1
CPU：
2
TextureHandle RenderPostProcess(） {
3
    var source = inputColor;
4
    ....
5
    source = DynamicExposurePass(renderGraph, hdCamera, source);
6

7
    TextureHandle bloomTexture = BloomPass(renderGraph, hdCamera, source, m_LensFlareScreenSpace.bloomMip.value, out screenSpaceLensFlareBloomMipTexture);
8
    TextureHandle logLutOutput = ColorGradingPass(renderGraph, hdCamera);
9
    ....
10
}

1
float SampleLuminance(float2 uv)
2
{
3
    // 这里获取了上一帧的平均亮度信息，单位是cd/m^2
4
    // prevExposure 为亮度值的倒数
5
    float prevExposure = ConvertEV100ToExposure(GetPreviousExposureEV100(), LensImperfectionExposureScale);
6
    float3 color = SAMPLE_TEXTURE2D_X_LOD(_SourceTexture, s_linear_clamp_sampler, uv, 0.0).xyz;
7

8
    // 根据上一帧的曝光还原原始辐射值，再转换为亮度输出
9
    return Luminance(color / prevExposure);
10
}
11

12
float WeightSample(uint2 pixel, float2 sourceSize, float luminance) {
13

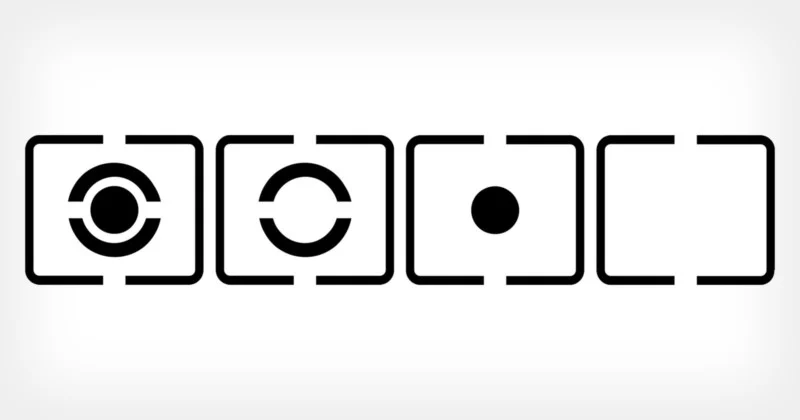

    // 经典的Center-weighted，中心画面权重高
14
    float screenDiagonal = 0.5f * (sourceSize.x + sourceSize.y);
15
    const float2 kCenter = sourceSize * 0.5f;
16
    return 1.0 - saturate(pow(length(kCenter - pixel) / screenDiagonal, 1.0));
17
}
18

19

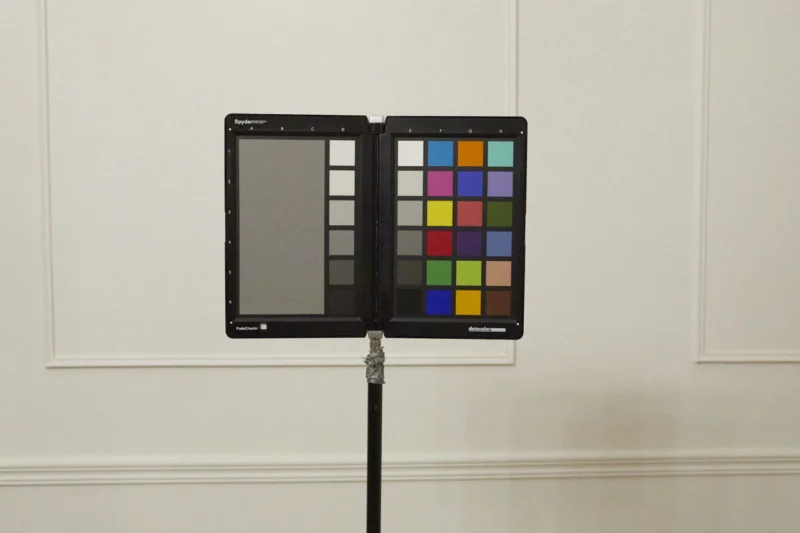

// CPU端传入 这里unity是直接将中度灰定义为12.5
20
float MeterCalibrationConstant = 12.5f;
21

22

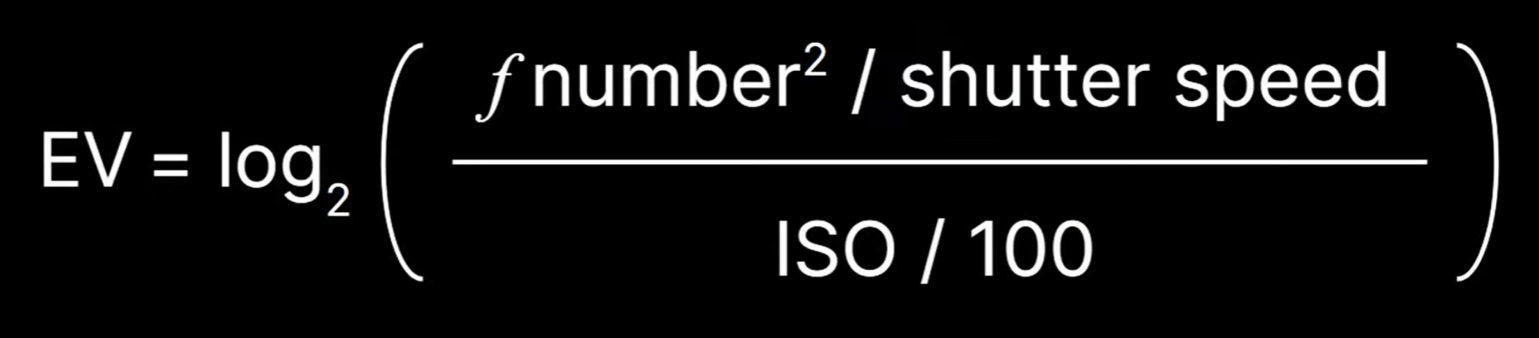

// 根据EV = log2 (LS / K) 这里 L 是亮度， S是100 ISO 以及中间灰作为矫正常数
23
// 计算出矫正后的EV100值。
24
float ComputeEV100FromAvgLuminance(float avgLuminance, float calibrationConstant)
25
{
26
    const float K = calibrationConstant;
27
    return log2(avgLuminance * 100.0 / K);
28
}
29

30
[numthreads(8,8,1)]
31
    void KPrePass(uint2 dispatchThreadId : SV_DispatchThreadID)
32
{
33
    。。。
34
    float2 uv = GetScreenUV();
35
    float luma = SampleLuminance(uv);
36

37
    float weight = WeightSample(dispatchThreadId, PREPASS_TEX_SIZE.xx, luma);
38

39

40
    float logLuma = ComputeEV100FromAvgLuminance(max(luma, 1e-4), MeterCalibrationConstant);
41

42
    //最终输出两数值，一个是像素的亮度转换而成的EV100值，一个是权重
43
    _OutputTexture[posInputs.positionSS] = float2(logLuma, weight);
44
}

1
[numthreads(REDUCTION_GROUP_SIZE,REDUCTION_GROUP_SIZE,1)]
2
void KReduction(uint2 groupId : SV_GroupID, uint2 groupThreadId : SV_GroupThreadID) {
3
    // 每个线程处理2x2像素块
4
    uint2 sampleIdx = (groupId.xy * REDUCTION_GROUP_SIZE + groupThreadId.xy) * 2u;
5
    float2 p1 = _InputTexture[sampleIdx + uint2(0u, 0u)].xy;
6
    float2 p2 = _InputTexture[sampleIdx + uint2(1u, 0u)].xy;
7
    float2 p3 = _InputTexture[sampleIdx + uint2(0u, 1u)].xy;
8
    float2 p4 = _InputTexture[sampleIdx + uint2(1u, 1u)].xy;
9

10
    // 分解亮度和权重
11
    float4 smp = float4(p1.x, p2.x, p3.x, p4.x);
12
    float4 weights = float4(p1.y, p2.y, p3.y, p4.y);
13

14
    // 乘积并存入groupSharedMemory
15
    gs_luminances[threadIdx] = smp * weights;
16
    gs_weights[threadIdx] = dot(weights, 1.0);
17

18
    // 组内完成同步，确保同group内的线程都计算完成
19
    GroupMemoryBarrierWithGroupSync();
20

21
    //并行归约 （4像素->2像素->像素）
22
    //合并组内全部像素的亮度和权重
23
    for(uint s = REDUCTION_TOTAL_THREADS / 2u; s > 0u; s >>= 1u)
24
    {
25
        if(threadIdx < s)
26
        {
27
            gs_luminances[threadIdx] += gs_luminances[threadIdx + s];
28
            gs_weights[threadIdx] += gs_weights[threadIdx + s];
29
        }
30

31
        GroupMemoryBarrierWithGroupSync();
32
    }
33

34
    //组内第一个线程去操作，将所有结果输出
35
    if(threadIdx == 0u)
36
    {
37
        _OutputTexture[groupId.xy] = float2(avgLuminance, gs_weights[0]);
38
    }
39
}

1
{
2
    。。。
3

4
    if(threadIdx == 0u) {
5
        float avgLuminance = dot(gs_luminances[0], 0.25);
6

7
        if (IsNaN(avgLuminance) || IsInf(avgLuminance))
8
            avgLuminance = 1.0;
9

10
        if (gs_weights[0] > 0.0)
11
            avgLuminance /= (gs_weights[0] * 0.25);
12

13
        //取上一帧的rt进行lerp，防止曝光突变。
14
        float exposure = AdaptExposure(avgLuminance - ParamExposureCompensation);
15
        exposure = clamp(exposure, ParamExposureLimitMin, ParamExposureLimitMax);
16
        _OutputTexture[groupId.xy] = float2(ConvertEV100ToExposure(exposure, LensImperfectionExposureScale), exposure);
17
    }
18
}

1
//在下一帧中
2
diffuseLighting *= GetCurrentExposureMultiplier();
3
specularLighting *= GetCurrentExposureMultiplier();
